Brand Name : | OEM |
Model Number : | 3.0X30MM |
Certification : | CE |
Price : | Negotiation |
Payment Terms : | T/T Or L/C |
Supply Ability : | 80 Tons Per Month |
Delivery Time : | 40-45 Days After Order Confirmed |

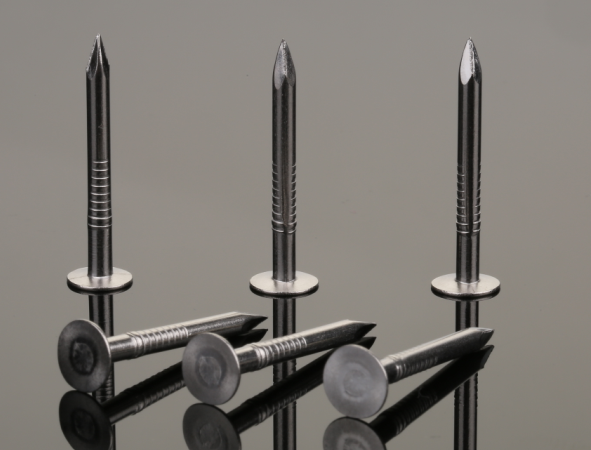

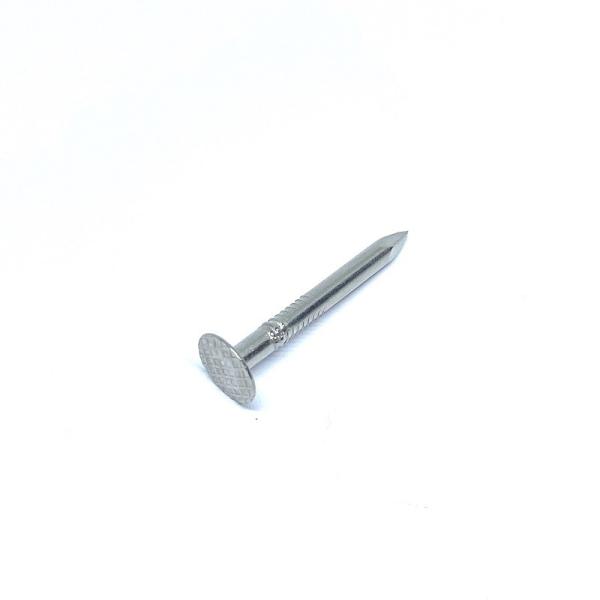

30MM Smooth Shank Roofing Nails , Stainless Steel Framing Nail
Made of 304-grade and 316-grade stainless steel, our nails are
highly suitable for outdoor applications thanks to their superior
resistance to corrosion and discoloration.
Applications Include:
Asphalt and fiberglass shingles for both new roofs and reroofing.
Also for attaching waterproof tar paper, roofing felt, metal drip
edges, insulation board, cementious fiber board products and vinyl
siding.
Nail Material ,Stainless steel grade
SUS | Chemical Composition (%) | ||||||||
C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr≤ | Ni | Mo | other | |
304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10 |
|
|
304HC | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10 |
| Cu 2-3 |
304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10 |
|
|
316 | 0.08 | 1.00 | 2.00 | 0.035 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
|
316L | 0.03 | 1.00 | 2.00 | 0.035 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
|
201CU | 0.12 | 1.00 | 7.5-10.0 | 0.045 | 0.030 | 13.5-16 | 3.5-5.5 | 0.5 | N≤0.1 |
D668/204CU | 0.12 | 1.00 | 11.0-15.0 | 0.045 | 0.030 | 12.5-14.0 | 1.6-2.5 | 0.6 | N≤0.1 |
Specifications
Length | Gauge | Shank | Head | |
7/8" | 11 | .120" | 3/8" | |
1" | 11 | .120" | 3/8" | |
1 1/4" | 10 | .134" | 3/8" | |
1 1/2" | 10 | .134" | 3/8" | |
1 3/4" | 10 | .134" | 3/8" | |
2" | 10 | .134" | 3/8" | |
2 1/2" | 10 | .134" | 3/8" | |
3" | 11 | .120" | 3/8" | |
3" | 10 | .134" | 3/8" |
![]() |
